5.3.1.1

The following levels of geometry are recorded within the LSG:

Level 1 (represents the start and end of the Street). See Figure 1.
Level 2 (represents the start and end of the Street but with points along it representing Street junctions on that Street). See Figure 2.
Level 3 (represents the start and end of the Street but with points along it representing Street junctions on that Street together with additional geometry alignment points along the Street). See Figure 3.

5.3.1.2

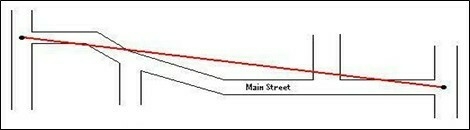

Figure 1 - Representation of a Level 1 Street

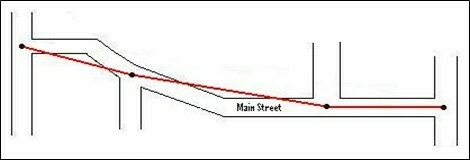

Figure 2 - Representation of a Level 2 Street

Figure 3 - Representation of a Level 3 Street
