Conventions - Level 2
6.3.3.1
ESU records have two extremity points recording the start and end points of the ESU. ESUs contained in a level 2 LSG do not indicate intermediate shape points. ESU extremity points must have a tolerance reflecting the positional spatial accuracy of no more than 1 metre. In Figure 10, the Street is comprised of three ESU Records.
6.3.3.3

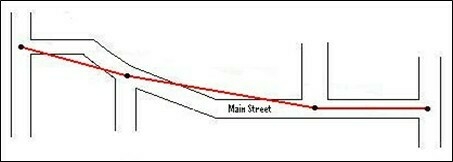

Figure 10 - Representation of a level 2 Street
